國家級高新技術企業/國家級專精特新小巨人企業/廣東省制造業單項冠軍企業
專業研發、生產無刷電機及其驅動器

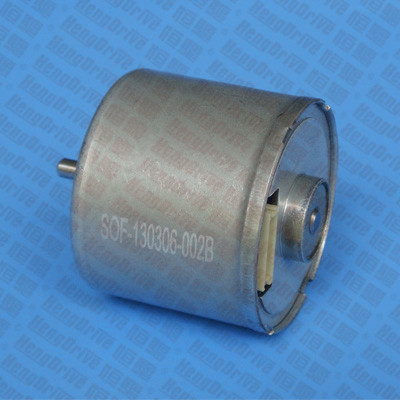

B3630M直流無刷電機

  • 所屬分類：[全部恒驅直流無刷電機]
  • 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
  • 訂購熱線：400-0755-631
  • 下載資料：資料下載

    B3630M

    Output Power 輸出功率: 1W~16W

    Weight 重量: 110g (Approx.)

    Brushless DC Motor-Typical Application 無刷直流電機-典型應用

    Home Application: Electric door, Electric Window, Electric Curtain,

    Electric Awning

    家用電器：電動門，電動窗，電動窗簾，電動遮陽棚

    Industry Facility: Transmission Equipment, Gear System, Actuator

    工業設備：傳動機械，齒輪系統，致動器

    Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor,

    Small Percussion Drill

    電控設備：電動閥門，小型轉換器，燈光調節器，電動扳手

    Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

    商業設備：電動門禁，銀行設施，ATM機，售賣機

    Personal Care: Massager   個人護理：按摩器



    Model

    型號

    電壓 Voltage(V)

    No Load 空載

    Rated Load 額定負載

    Stall 堵轉

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3630M-S01

    5.8-12

    6

    2940

    0.39

    10.00

    2270

    0.91

    2.38

    44.05

    2.5

    B3630M-S02

    8-26

    12

    5200

    0.27

    14.72

    4260

    0.90

    6.56

    81.30

    2.5

    B3630M-S03

    8-26

    24

    6970

    0.20

    19.62

    5640

    0.76

    11.58

    102.51

    2.5

    B3630M-S04

    8-26

    24

    15755

    0.39

    20.00

    13213

    1.59

    27.67

    123.9

    3.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

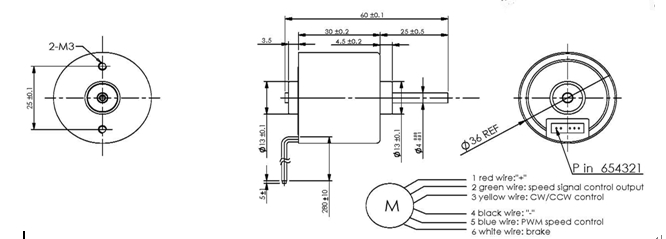

    Outline Drawing 外形圖:  Usable machine screw length 3.0mm max from motor mounting surface      Unit: Millimeter

    Performance Curve 性能曲線:

    B3630M-S02                 12V

      B3630M-S03               24V
