B3657M 直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B3657M |
Output Power 輸出功率: 5W~80W |
Weight 重量: 220g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automotive Parts: Pump 汽車部件：泵 Home Application: White Goods, Small Appliance, Fann Coffee Machine, Milk Tea Machine 家用電器：白色家電，小家電，風扇，咖啡機，奶茶機 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌器，離心機 Power Tools: Screwdriver, Drill, Air Compressor 電動工具：電動螺絲批，電鉆，氣體壓縮機 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine 商業設備：打印機，復印機，投影機，ATM機，售賣機 Personal Care: Hair Dryer, Electric Shaver, Massager 個人護理：風筒，電動須刨，按摩器 |
|||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B3657M-S01 |
8-26 |
12 |
3170 |
0.26 |
29.4 |
2460 |
1.15 |
7.6 |
181.5 |
2.5 |
|
B3657M-S02 |
8-26 |
12 |
3100 |
0.24 |
40.22 |
2560 |
1.31 |
10.78 |
215.8 |
2.5 |
|
B3657M-S03 |
8-26 |
24 |
6830 |
0.34 |
40.20 |
6134 |
1.48 |
25.80 |
195.0 |
2.5 |
|
B3657M-S04 |
8-26 |
24 |
26707 |
0.68 |
29.43 |
21132 |
3.79 |
65.13 |
139.47 |
5.0 |
|
B3657M-S05 |
8-26 |
24 |
4743 |
0.25 |
98.00 |
3486 |
2.24 |
35.78 |
369.87 |
5.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

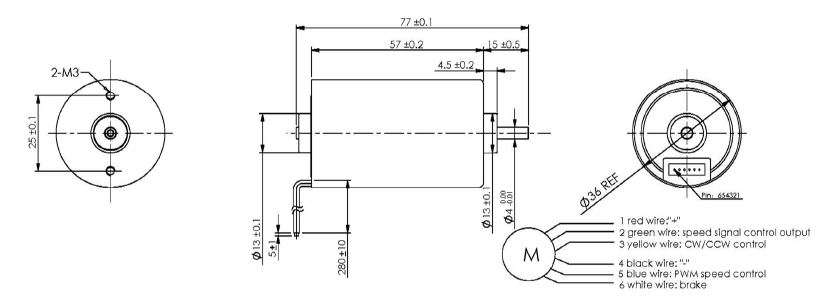

Outline Drawing 外形圖: Usable machine screw length 4.0mm max from motor mounting surface Unit: Millimeter
Performance Curve 性能曲線:
|
B3657M-S02 12V |
B3657M-S05 24V |
.jpg)
