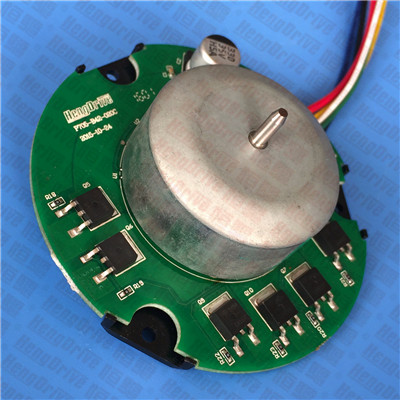

B4228S

Outer Rotor

Output Power 輸出功率:50W~200W

Weight 重量:140g (Approx.)

外轉子

Brushless Motor-Typical Application無刷電機-典型應用

Home Application: Vacuum Cleaner, Stirrer, High Speed Fan

家用電器：吸塵器，攪拌器，高速風扇

Personal Care: Hair Dryer   個人護理：電吹風

Medical Apparatus: Medical Stirrer, Centrifugal Machine

醫療器械：醫用攪拌器，離心機，制氧機

Industry Equipment: Clearing machine, Blower Fan

工業設備：清潔機，鼓風機

Business Equipment: Cordless Drill, Electric Tool    商業設備：充電鉆，電動工具

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B4228S-S01

8-20

14.4

29114

1.70

40

24480

9.00

102.5

251.3

15

B4228S-S02

8-20

18

31200

1.46

45

25691

8.50

121.0

254.5

15

B4228S-S03

12-26

24

29220

1.10

50

26029

7.24

136.0

454.5

15

B4228S-S04

AC85-165V

110VAC

25420

0.31

40

19278

1.43

80.7

165.4

2.0

B4228S-S05

AC185-265V

220VAC

24300

0.22

40

19495

0.93

81.6

202.0

2.0

B4228S-S06

DC310V

310VDC

25033

0.23

40

19538

0.96

81.2

201.0

2.0

B4228S-S07

AC185-265V

220VAC

28000

0.15

60

19200

1.35

120.0

192.6

4.0

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

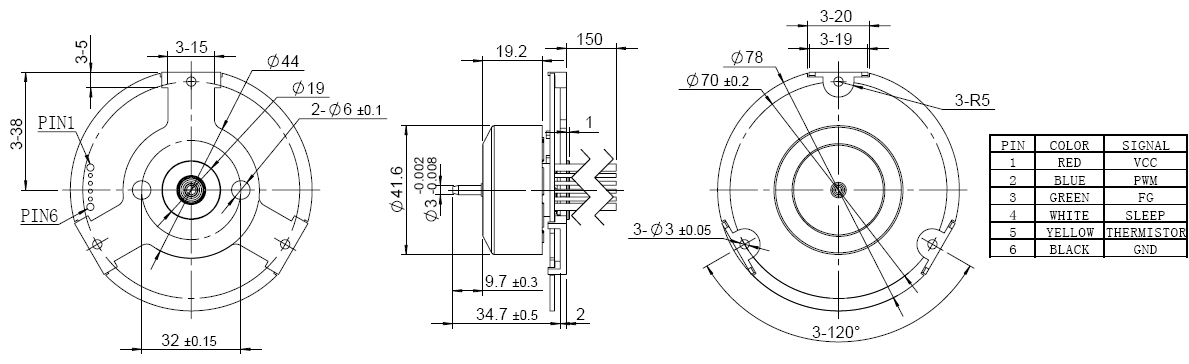

Unit: Millimeter

B4228S-S01                  14.4V

   B4228S-S05              220V
