B8031S

Outer Rotor

Output Power 輸出功率: 20W~100W

Weight 重量: 500g (Approx.)

外轉子

3-Phase Brushless DC Motor-Typical Application (In development)

三相無刷直流電機-典型應用（研發中）

Automotive Parts: Auto Pumps, Auto Air Conditioning Compressor

汽車部件：汽車泵，汽車空調壓縮機

Medical Apparatus: Medical Pump, Electric Joint  醫療器械：醫療泵，電動關節

Business Equipment: Electrical Actuator, Robot Joint Drive

商業設備：電動致動器，機器人關節

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Stall堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

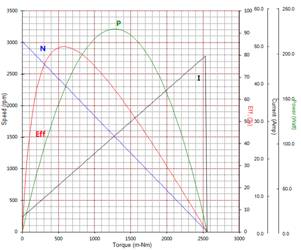

B8031S-S01

5-14

12

3018

4.05

306

2657

9.34

85.14

2556

20

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。
